{"product":{"productId":"agid.22035","price":241.53,"name":"Locating bushes, steel, for pneumatic locating cylinder, Form B"},"currency":"EUR"}
- Fast, secure and precise positioning of the exchange unit
- Counterpart to the locating cylinder
- Shorter set-up and changeover times
Description
Material
Carbon steel.
Version
Housing hardened and black oxidised.
Contact faces ground.
Contact faces ground.
Note

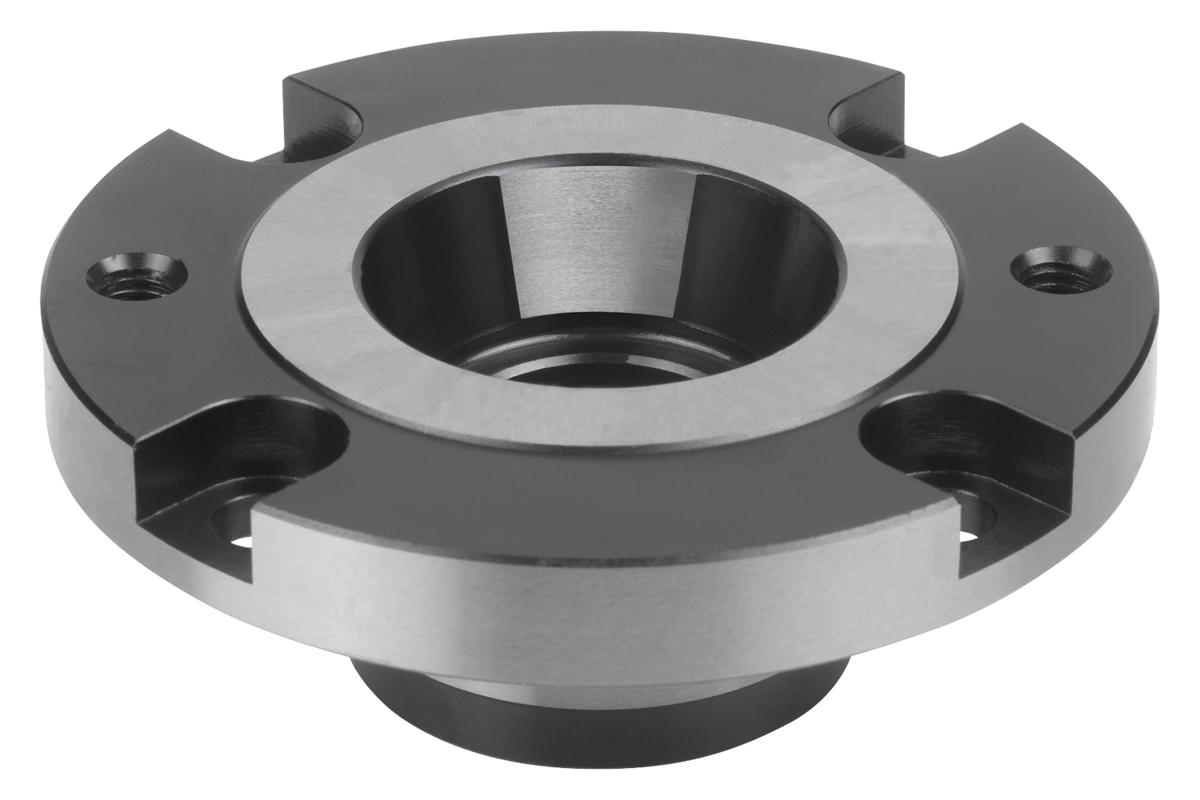

Locating bushes are placed in a fixture or interchangeable subplate and form the counterpart to the locating cylinder.
The locating bushes are centred in a reamed hole and then fastened with 4 screws.
The balls of the locating cylinder engage in the groove in the locating bush, thereby forming a fast, secure and highly accurate changeover unit, and reducing setup and changeover times.
The locating bushes are centred in a reamed hole and then fastened with 4 screws.
The balls of the locating cylinder engage in the groove in the locating bush, thereby forming a fast, secure and highly accurate changeover unit, and reducing setup and changeover times.
Attention
Please observe installation notes of the locating bushes.
